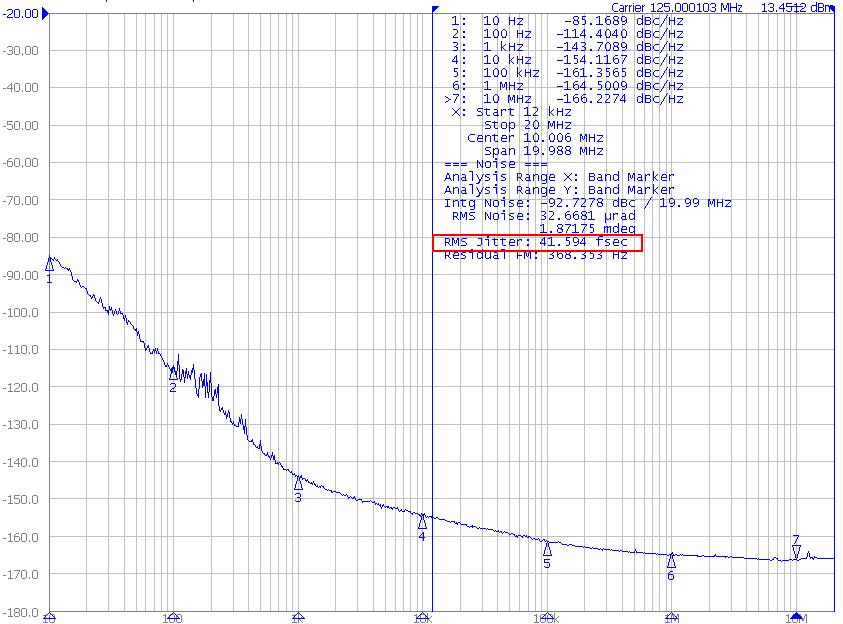

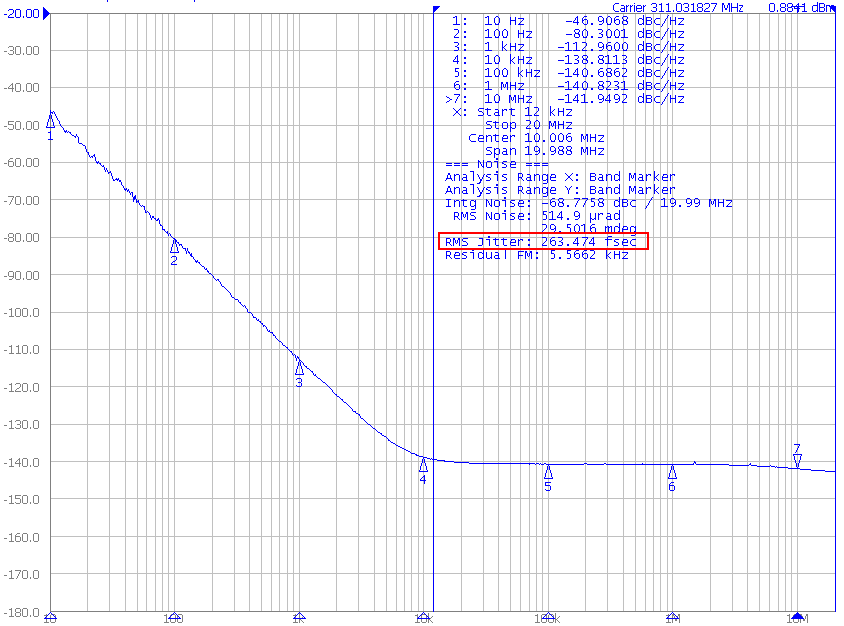

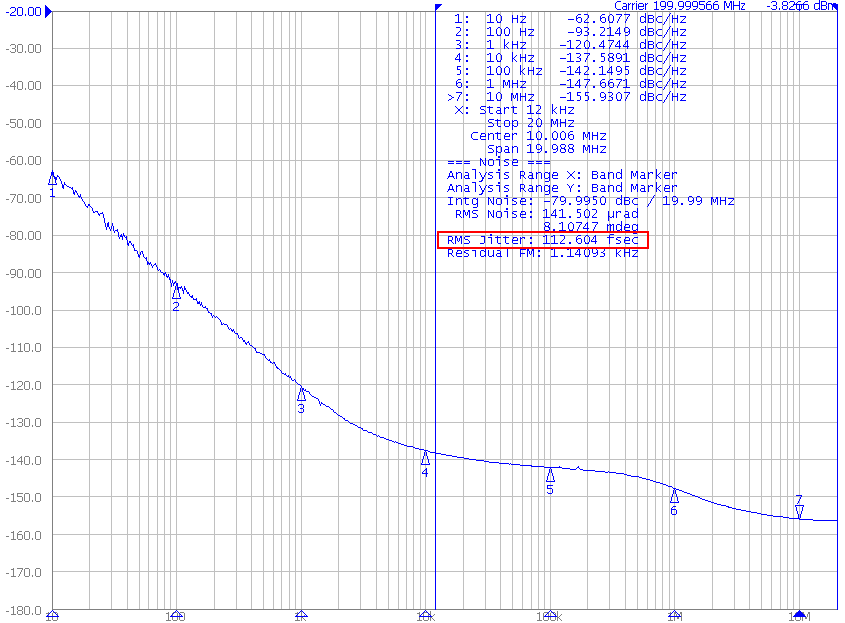

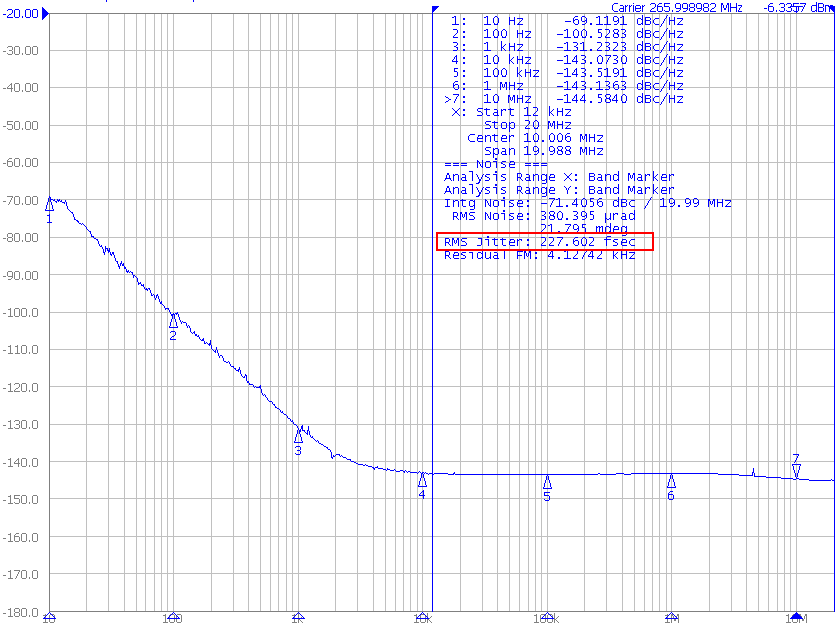

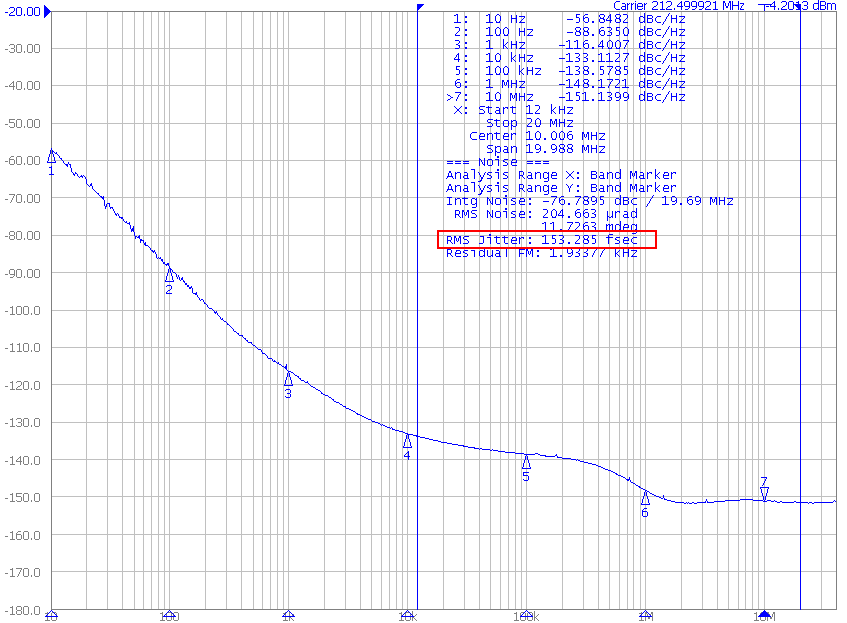

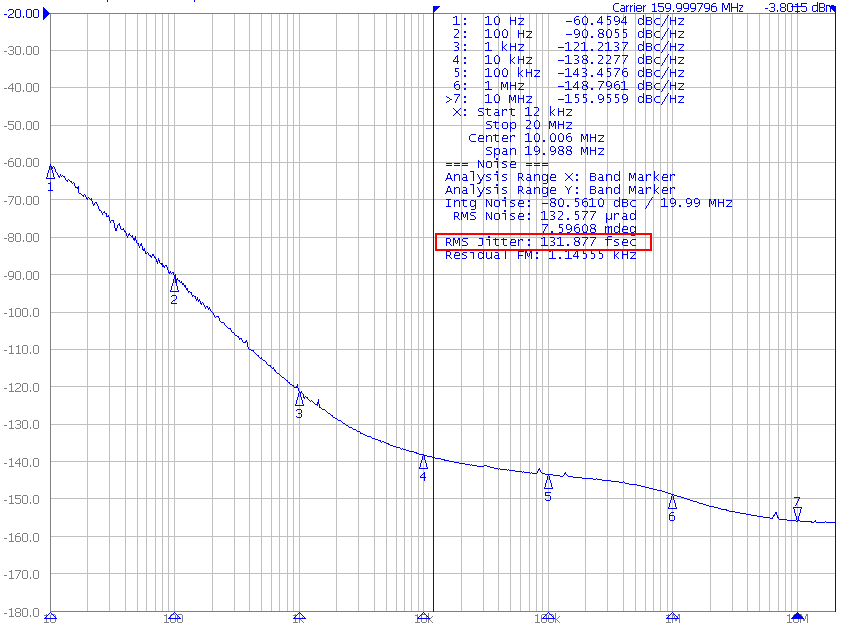

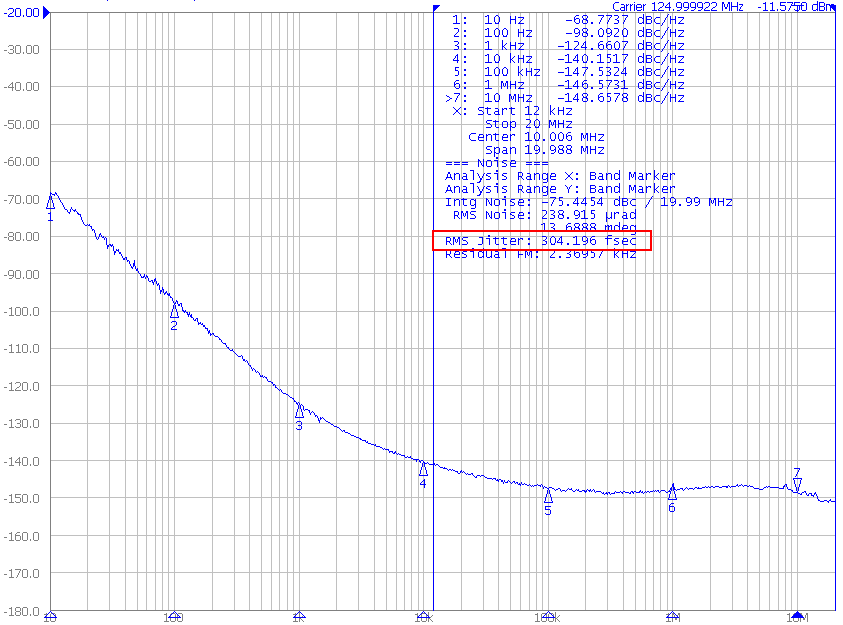

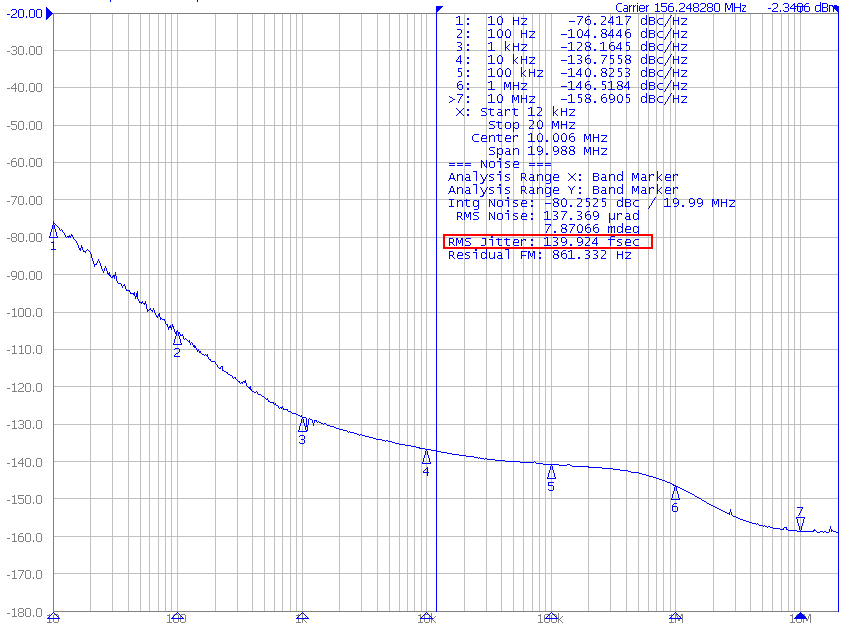

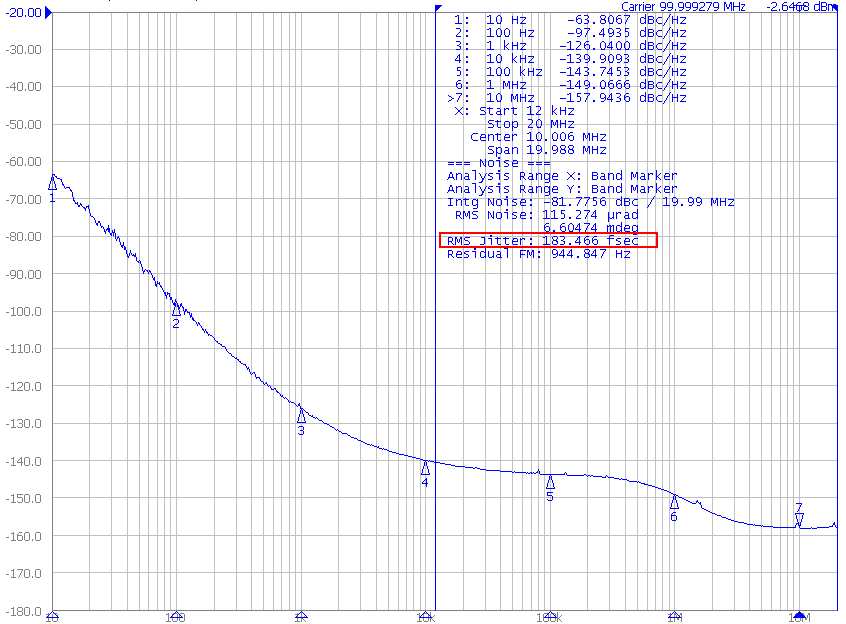

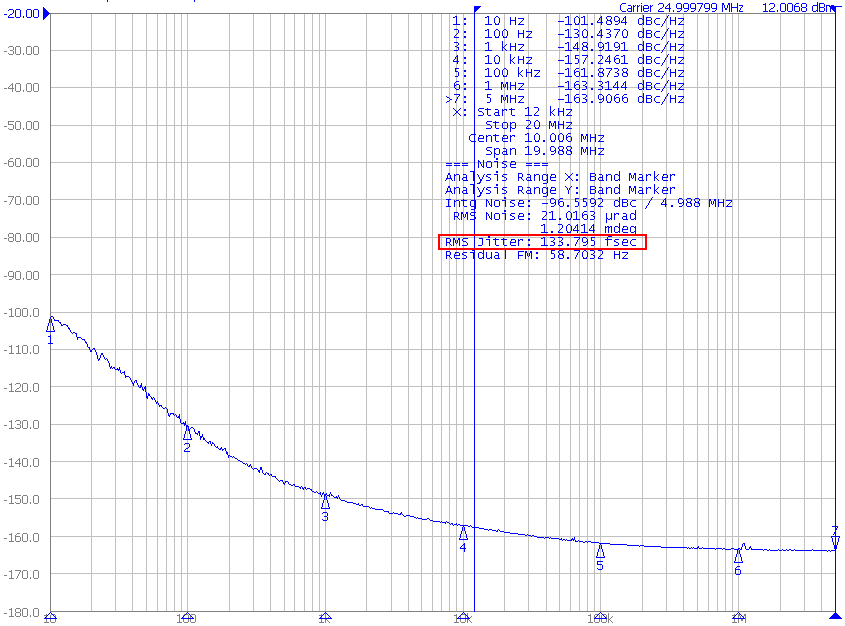

Welcome to Tamadevice WEB site. Our products are quartz crystal oscillators , and all made in Japan. - LVDS output crystal oscillators - LV-PECL output crystal oscillators) - HCSL output crystal oscillator - LV-PECL output voltage controled crystal oscillators - LVDS output voltage controled crystal oscillators v<FPGA clock reference guide > New ! Excellent low phase jitter ( Click on above image to full size image ) Excellent low jitter ( peak to peak ) ( Click on above image to full size image ) Phase Noise Measurement data LVDS LV-PECL HCSL CMOS - CL20VBC-125MHz - CL20VBC-266MHz - CL28VBC-125MHz - CL28VBC-212.5MHz - CP204BC-156.250MHz - CP204BC-311.040MHz - CP284BC-160MHz - CP284BC-200MHz - CP384**-122.880MHz -CH284BS-100MHz -CH284BS-156.25MHz -CX104BS-25MHz -CX104BS-125MHz -CX204AC-27MHz -CX204BC-77.76MHz

* Products information RoHS Compliant * All products are RoHS compliant. < LVDS output crystal oscillators > External Type Output Frequency Range Dimension (mm) Supply Voltage Frequency Stability Data sheet CL500 LVDS (Low jitter) 80MHz - 266MHz 5.0x3.2x1.4 +2.5Ｖdd +3.3Vdd +/- 25ppm max +/-50ppm max +/-100ppm max CL580 LVDS (Low jitter) 13.5MHz - 220MHz 5.0x3.2x1.4 +2.5Ｖdd +3.3Vdd +/- 25ppm max +/-50ppm max +/-100ppm max CL200 LVDS (Low jitter) 80MHz - 266MHz 7.0x5.0x1.8 +2.5Ｖdd +3.3Vdd +/- 25ppm max +/-50ppm max +/-100ppm max CL280 LVDS (Low jitter) 13.5MHz - 220MHz 7.0x5.0x1.8 +2.5Ｖdd +3.3Vdd +/- 25ppm max +/-50ppm max +/-100ppm max <Selection Guide > * Low jitter, low phase noise ----- <CL500> <CL580> <CL200> <CL280> series * Low jitter, high speed switching (0.2nS typ.) ------ <CL580> <CL280> series * Low jitter, not high speed switching ----- <CL500> <CL200> series When the frequency is same, the most reasonable price product is <CL200> series. < LV-PECL output crystal oscillators > CP500 LV-PECL (Low jitter) 25MHz - 300MHz 5.0x3.2x1.4 +2.5Ｖdd +3.3Vdd +/- 25ppm max +/-50ppm max +/-100ppm max CP580 LV-PECL (Low jitter) 13.5MHz - 220MHz 5.0x3.2x1.4 +2.5Ｖdd +3.3Vdd +/- 25ppm max +/-50ppm max +/-100ppm max CP200 LV-PECL (Low jitter) 25MHz - 300MHz 7.0x5.0x1.8 +2.5Ｖdd +3.3Vdd +/- 25ppm max +/-50ppm max +/-100ppm max CP280 LV-PECL (Low jitter) 13.5MHz - 220MHz 7.0x5.0x1.8 +2.5Ｖdd +3.3Vdd +/- 25ppm max +/-50ppm max +/-100ppm max <Selection Guide > * Low jitter, low phase noise ----- <CP500> <CP580> <CP200> <CP280> series * Low jitter, high speed switching (0.2nS typ.) ------ <CP580> <CP280> series * Low jitter, not high speed switching ----- <CP500> <CP200> series When the frequency is same, the most reasonable price product is <CP200> series. < LV-PECL output voltage controled crystl oscillators > * APR > +/- 50ppm CP340 LV-PECL VCXO 1MHz - 8000MHz 7.0x5.0x2.0 +3.3Vdd APR>+/-50ppm CP380 LV-PECL VCXO (Low jitter) 20MHz - 160MHz 7.0x5.0x1.8 +3.3Vdd APR>+/-50ppm <HCSL output crystal oscillators > CH580 HCSL (Low jitter) 27MHz - 220MHz 5.0x3.2x1.4 +2.5Ｖdd +3.3Vdd +/- 25ppm max +/-50ppm max +/-100ppm max CH280 HCSL (Low jitter) 27MHz - 220MHz 5.0x3.2x1.4 +2.5Ｖdd +3.3Vdd +/- 25ppm max +/-50ppm max +/-100ppm max <H-CMOS output crystal oscillators> CX504 H-CMOS (Low jitter) 1MHz - 166MHz 5.0x3.2x1.4 +3.3Vdd +/- 25ppm max +/-50ppm max +/-100ppm max CX104 H-CMOS (Low jitter) 1MHz - 166MHz 7.0x5.0x1.8 +3.3Vdd +/- 25ppm max +/-50ppm max +/-100ppm max < H-CMOS output voltage controled crystl oscillators > * APR > +/- 50ppm CX204 H-CMOS (Low jitter) 1MHz - 160MHz 7.0x5.0x1.8 +3.3Vdd APR>+/-50ppm CX207 H-CMOS (Low jitter) 10MHz - 80MHz 7.0x5.0x1.8 +5.0Ｖdd APR>+/-50ppm Copylight (c) Tamadevice.co.ltd .
